Product: Molca VR SDK (paths assume molca-sdk-vr). Not used by the Digital Twin SDK (_MolcaDT). Script: Assets/_MolcaSDK/_VR/Scripts/Scenario/Data/ScenarioDataConfig.cs
Type: SettingModule (listed on GlobalSettings)

​
When to use

Use this module whenever scenario selection/content resolution is needed in VR runtime (local scenario assets, fetched scenario metadata, execution/player mode switches).

​
Role

  • Holds ScenarioCollection entries (local BaseScenarioData assets).
  • Stores execution mode (ScenarioExecutionMode) and player mode — standalone vs connected; connected expects Scenario session + valid network config.
  • After a content fetch, supports lookup by organization scenario id and related org metadata (see source for SetFetchedContent / FetchedScenarios).
  • Resolves scenario scenes via SceneLoadPlan — each scenario has a singlePlayerPlan and optional roleSceneMappings for multiplayer. The plan executor loads preload scenes (environment, shared assets) before the main scenario scene, waiting for RefId registrations between each.
For a full walkthrough from a new asset to a playable scene, see New scenario quick start.

​
Lookup helpers

GetScenarioDataByName, GetScenarioData(string scenarioId), GetScenarioDataByScenarioId, GetScenarioDataByOrgId, etc. — confirm signatures in the .cs file.

​
Troubleshooting

  • Scenario not found by id/org id: verify scenario collections are assigned and fetched content has been set before lookup.
  • Connected mode fails at runtime: check Scenario network config endpoints and auth/session flow.
  • Wrong mode behavior: confirm ScenarioExecutionMode and player mode values on the module asset in the active GlobalSettings.
  • Scene doesn’t load: verify the SceneLoadPlan is configured — check that scenarioScene has either sceneName or sceneReference set. For Addressables, confirm the scene is marked as Addressable and the key is valid.
  • Preload scenes load out of order: preload scenes load sequentially by array index. Index 0 always loads as Single (active scene); subsequent entries load Additive.
  • Scene loads but objects missing: check waitForRefIds on preload scenes — the executor waits for those RefIds to be registered in ReferenceManager before loading the next scene. Timeout is 15 seconds; check console for warnings.

​
Unity Editor

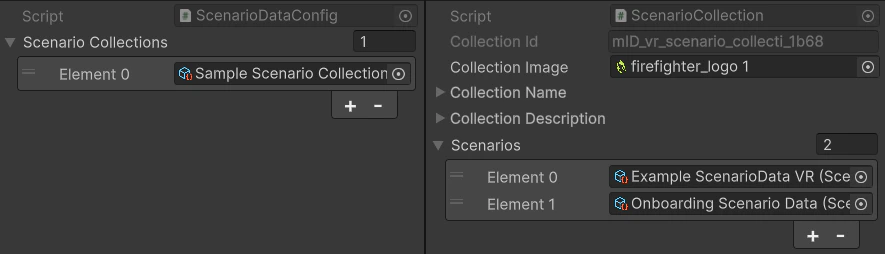

Scenario Data Config Inspector
