Folder: Assets/_MolcaSDK/Code/Scripts/UI/ Examples: ColorIDButton, ColorIDButtonGroup, BillboardUI, ProgressBarUI, LanguageDropdown, PasswordField, CodeInputPanel, BatteryStatus, CanvasScaleListener, UIScaleOption.

​
When to use

Use shared UI widgets when you need reusable, scene-agnostic UI behavior (button states, language selection, billboard labels, progress indicators) without duplicating custom MonoBehaviours per canvas.

​
Inspector setup

  • Add widget components under your UI canvas/prefab.
  • For language flows, wire LanguageDropdown and ensure Localization is configured in Global Settings.
  • For theme-aware buttons, keep ColorID configured on the same object (required by ColorIDButton).

​
Code

ColorIDButton and related widgets are script-driven with inspector hooks:
using MolcaSDK.UI;
using UnityEngine;

public class WidgetBinder : MonoBehaviour
{
    [SerializeField] private ColorIDButton startButton;

    private void OnEnable()
    {
        startButton.onClick.AddListener(OnStartClicked);
        startButton.onToggleChanged.AddListener(OnToggleChanged);
    }

    private void OnDisable()
    {
        startButton.onClick.RemoveListener(OnStartClicked);
        startButton.onToggleChanged.RemoveListener(OnToggleChanged);
    }

    private void OnStartClicked() { }
    private void OnToggleChanged(bool isOn) { }
}

​
Troubleshooting

  • Colors not updating: verify ColorID exists on the same object (ColorIDButton has RequireComponent); theme changes require ColorSchemeManager / init if you rely on scheme events.
  • Language dropdown empty: confirm LocalizationModule.Languages is populated and RuntimeManager finished initialization.
  • Widget not reacting in play mode: check GraphicRaycaster/EventSystem and interactable flags on target widget; world-space canvases need the correct event camera and Sorting Layer.
  • BillboardUI jitter or wrong facing: confirm reference camera / XR rig; disable conflicting LookAt scripts on the same transform.
  • CodeInputPanel / PasswordField validation: ensure submit button wires to the panel’s validation flow; VR canvas scale can shrink touch targets — check Canvas Scaler and colliders for world UI.
  • ProgressBarUI stuck: driven by code or animator — verify the value property your binder writes to matches the widget’s expected range (0–1 vs 0–100).
  • BatteryStatus inaccurate: platform-dependent; editor often reports placeholder values — test on device.

​
Unity Editor

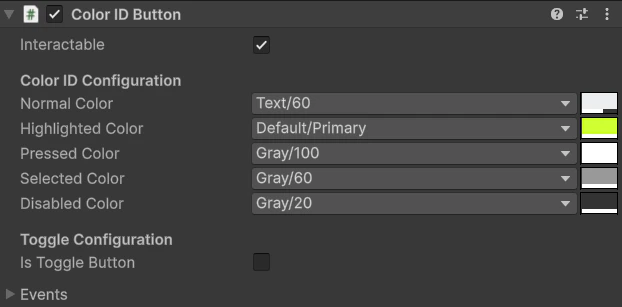

Ui Widgets Inspector
