HttpClient and HttpRequestAsset

Files:

Packages/com.molca.core/Runtime/Networking/Http/HttpClient.cs
Packages/com.molca.core/Runtime/Networking/Http/HttpRequestAsset.cs

When to use

HttpRequestAsset (recommended) — for data-driven endpoints where URL, method, headers, and body templates live in a ScriptableObject. Best for stable API calls configured once in the Inspector.
HttpRequestBuilder (programmatic) — for dynamic endpoints or when URL/body must be built at runtime. Uses a fluent builder API.
Both route through the same HttpClient subsystem with queuing, concurrency control, and connection error events.

HttpClient

RuntimeSubsystem — async HTTP with request queuing, auth header management, and event hooks.

⚠️ The static HttpClient.* API is deprecated. All static members (SendAsync, Send, CreateRequest, BaseUrl, events, etc.) are marked [Obsolete]. Use the IHttpClient instance interface instead:
var http = RuntimeManager.GetService<IHttpClient>();
Or inject via [Inject] IHttpClient http;

IHttpClient (recommended)

Member	Signature	Description
`BaseUrl`	`string BaseUrl { get; }`	Base URL from configured `HttpModule`, or empty
`MaxConcurrentRequests`	`int MaxConcurrentRequests { get; }`	Max concurrent in-flight requests
`ActiveRequestCount`	`int ActiveRequestCount { get; }`	Number of requests currently in flight
`RequestHistory`	`IReadOnlyList<HttpRequestContext> RequestHistory { get; }`	Completed-request history
`SendAsync`	`Awaitable<HttpResponse> SendAsync(HttpRequest request, CancellationToken ct = default)`	Send and await response with optional cancellation
`Send`	`void Send(HttpRequest req, CancellationToken ct, Action<HttpResponse> onSuccess, Action<string> onError, Action<float> onProgress)`	Callback-style send with cancellation
`CreateRequest`	`HttpRequestBuilder CreateRequest()`	Start a fluent builder chain
`AddDefaultHeader`	`void AddDefaultHeader(string key, string value)`	Add header to all future requests
`RemoveDefaultHeader`	`void RemoveDefaultHeader(string key)`	Remove a default header
`ClearDefaultHeaders`	`void ClearDefaultHeaders()`	Clear all default headers
`CancelAllRequests`	`void CancelAllRequests()`	Abort all active and queued requests
`AddInterceptor`	`void AddInterceptor(IHttpRequestInterceptor interceptor)`	Register a request interceptor
`RemoveInterceptor`	`void RemoveInterceptor(IHttpRequestInterceptor interceptor)`	Remove a previously registered interceptor
`SetRetryPolicy`	`void SetRetryPolicy(HttpRetryPolicy policy)`	Override retry policy (null restores module default)
`SetTransport`	`void SetTransport(IHttpTransport transport)`	Replace transport (null restores `UnityWebRequestTransport`)
`ClearHistory`	`void ClearHistory()`	Clears the request history

Events: RequestStarted, RequestCompleted, RequestFailed, ConnectionError (instance event Action).

Legacy static API (deprecated)

The following static members on HttpClient still compile but are [Obsolete] — migrate to the IHttpClient instance pattern above.

Member	Migration
`HttpClient.SendAsync(request)`	`http.SendAsync(request)`
`HttpClient.Send(...)`	`http.Send(...)`
`HttpClient.CreateRequest()`	`http.CreateRequest()`
`HttpClient.AddDefaultHeader(k, v)`	`http.AddDefaultHeader(k, v)`
`HttpClient.BaseUrl`	`http.BaseUrl`
`HttpClient.OnRequestStarted`	`http.RequestStarted`
`HttpClient.SetRetryPolicy(p)`	`http.SetRetryPolicy(p)`

HttpRequestAsset

ScriptableObject describing URL, method, headers, and body templates. Create via Molca → Networking → HTTP Request.

Method	Signature	Description
`SendAsync`	`async Awaitable<HttpResponse> SendAsync()`	Send this asset’s configured request
`Send`	`void Send(Action<HttpResponse> onSuccess, Action<string> onError, Action<float> onProgress)`	Callback-style send
`CreateBuilder`	`HttpRequestBuilder CreateBuilder()`	Clone into a builder for runtime modifications
`Validate`	`bool Validate(out string[] errors)`	Check configuration before sending

Code

From a HttpRequestAsset (recommended when the request is mostly data-driven):

using Molca.Networking.Http;
using UnityEngine;

public class ProfileClient : MonoBehaviour
{
    [SerializeField] private HttpRequestAsset fetchProfile;

    private async void Start()
    {
        await RuntimeManager.WaitForInitialization();
        var response = await fetchProfile.SendAsync();
        if (response.IsSuccess)
            Debug.Log(response.Text);
    }
}

Programmatic requests using the fluent builder (preferred — uses IHttpClient):

using Molca.Networking.Http;
using Molca;
using UnityEngine;

public class DynamicApiClient : MonoBehaviour
{
    [Inject] private IHttpClient _http;

    private async void Start()
    {
        await RuntimeManager.WaitForInitialization();
        if (_http == null) return;

        var response = await _http.CreateRequest()
            .Method(HttpMethod.GET)
            .Url("/api/users/42")
            .Header("Accept", "application/json")
            .Timeout(10)
            .SendAsync();

        if (response.IsSuccess)
            Debug.Log(response.Text);
        else
            Debug.LogError(response.ErrorMessage);
    }
}

API Reference

IHttpClient (instance API)

See the IHttpClient table above. Resolve via:

var http = RuntimeManager.GetService<IHttpClient>();
// Or inject:
[Inject] private IHttpClient _http;

HttpRequestAsset

Method	Signature	Description
`SendAsync`	`async Awaitable<HttpResponse> SendAsync()`	Send this asset’s configured request
`Send`	`void Send(Action<HttpResponse> onSuccess, Action<string> onError, Action<float> onProgress)`	Callback-style send
`CreateBuilder`	`HttpRequestBuilder CreateBuilder()`	Clone into a builder for runtime modifications
`Validate`	`bool Validate(out string[] errors)`	Check configuration before sending

HttpRequestBuilder

Method	Signature	Description
`Method`	`HttpRequestBuilder Method(HttpMethod method)`	Set HTTP method (GET, POST, PUT, DELETE)
`Url`	`HttpRequestBuilder Url(string url)`	Set relative or absolute URL
`FullUrl`	`HttpRequestBuilder FullUrl(string url)`	Set absolute URL, bypassing BaseUrl
`Header`	`HttpRequestBuilder Header(string key, string value)`	Add a request header
`Body`	`HttpRequestBuilder Body(string body)`	Set request body content
`Timeout`	`HttpRequestBuilder Timeout(int seconds)`	Set request timeout
`SendAsync`	`async Awaitable<HttpResponse> SendAsync()`	Build and send the request

Troubleshooting

Request fails silently: subscribe to HttpClient.OnRequestFailed or OnConnectionError for diagnostics. The request may have been queued but not started if MaxConcurrentRequests is exceeded.
Auth header missing on requests: call HttpClient.AddDefaultHeader("Authorization", "Bearer " + token) after login. Default headers are applied to all future requests automatically.
Wrong base URL: BaseUrl comes from HttpModule on Global Settings. If the module is missing, URLs must be absolute (set useFullUrl = true or use FullUrl() on the builder).
Request validation fails: HttpRequestAsset.Validate(out errors) will return false if the URL is empty or malformed. Check the errors array for specifics.

DataManager — for persistent data providers rather than one-off requests
Scenario network config — VR session HTTP endpoints
Global Settings — HttpModule base URL and defaults
Recipe: Integrate HTTP requests with data persistence — step-by-step guide to combining HttpClient and DataManager for API calls with local caching

Unity Editor

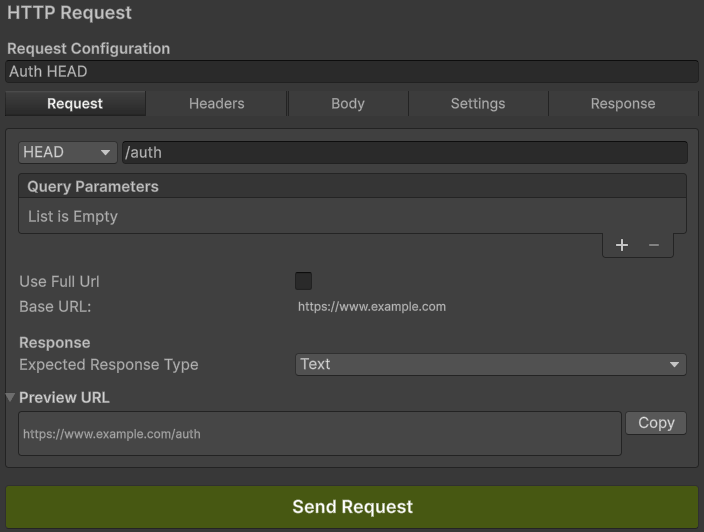

Http Request Asset Inspector — HttpRequestAsset — endpoint definition in Inspector
