Step (base class)

File: Packages/com.molca.core/Runtime/Sequence/Step/Step.cs
Namespace: Molca.Sequence

When to use

Step is the base class for every node in a SequenceController tree. Use it when you need an ordered action that must complete before the next action runs. Create subclasses for custom completion logic (timers, input wait, XR interactions) or use built-in core step types.

Status

StepStatus: Inactive, Active, Completed.

Completion

IsCompleted is true only when the step is internally complete and all child steps are complete.

Identity and telemetry

RefId / RefType ("Step") for the Reference system.
StepId (int) — correlate with backend scoring when using Step scoring auxiliary.

Events

OnStepBegin, OnStepEnd (UnityEvent), OnStatusChanged, StartTime / EndTime.

Auxiliaries

[SerializeReference] List<StepAuxiliary> — see Core Sequence/Auxiliary/ and VR step auxiliaries. In VR training, the StepInfo auxiliary (and subclasses for extra fields) supplies step titles used by Scenario UI task lists and modal copy — not just optional scoring/haptics.

VR subclasses

Training steps in Assets/_MolcaSDK/_VR/Scripts/Scenario/Steps/ — see the VR steps section in navigation.

Typical custom / VR step (code)

VR steps inherit Step, wire [SerializeField] for designers, subscribe in OnStepActivated, and call Complete() when the training rule is satisfied (dispatches Step.Completed / Step.FullyCompleted via EventDispatcher).

using Molca.Sequence;
using UnityEngine;

public class ExampleTrainingStep : Step
{
    [SerializeField] private float holdSeconds = 2f;
    private float _elapsed;

    protected override void OnStepActivated()
    {
        base.OnStepActivated();
        _elapsed = 0f;
    }

    public override void UpdateStep()
    {
        base.UpdateStep();
        _elapsed += Time.deltaTime;
        if (_elapsed >= holdSeconds)
            Complete();
    }
}

Concrete VR steps (grab, teleport, valve, …) follow this shape with XR-specific fields — see each feature page and the matching *.cs under _MolcaSDK/_VR/Scripts/Scenario/Steps/.

API Reference

Method	Signature	Description
`OnStepActivated`	`protected virtual void OnStepActivated()`	Called when the step becomes active — override to initialize step-specific logic, subscribe to events, or reset state
`OnStepDeactivated`	`protected virtual void OnStepDeactivated()`	Called when the step becomes inactive — override to clean up resources, unsubscribe from events, or save state
`UpdateStep`	`public virtual void UpdateStep()`	Called every frame while the step is active — override to implement per-frame logic like timers or condition checks
`Complete`	`protected void Complete()`	Mark the step as completed and dispatch `Step.Completed` / `Step.FullyCompleted` events via EventDispatcher to advance the sequence
`ForceComplete`	`public void ForceComplete()`	Skip `CanComplete()` gate and mark step internally complete. Prefer `Complete()` for normal flow
`ResetStep`	`public void ResetStep()`	Reset the step and all its children to their initial, uncompleted state
`OnStepResumed`	`protected virtual void OnStepResumed()`	Called when the sequence resumes after pause — override to restore state or restart timers
`OnStepCompleted`	`protected virtual void OnStepCompleted()`	Called after the step is marked complete — override for post-completion logic before auxiliaries fire

Recipe: Set up a basic sequence — step-by-step guide to creating a SequenceController with custom steps

Unity Editor

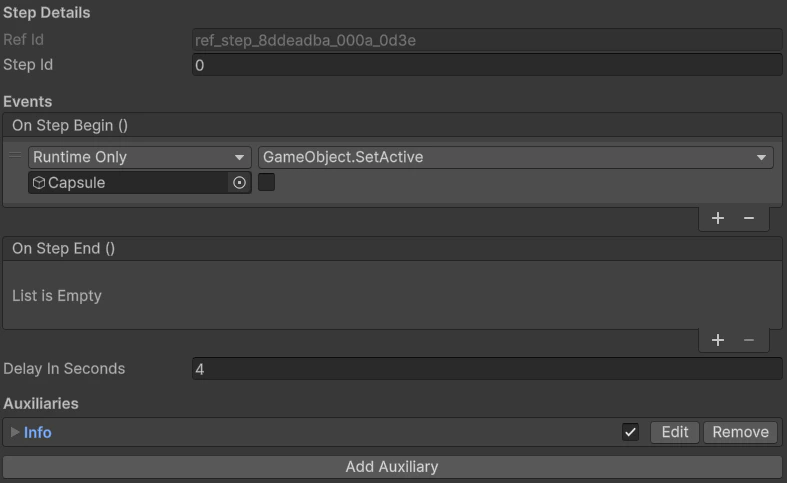

Step Inspector — Step component on a training object
