Core step types

Folder: Packages/com.molca.core/Runtime/Sequence/Step/ Molca Core ships these Step subclasses beyond the base Step:

Type	Description
ParallelStep	Run child steps concurrently. Completes when configurable completion rules are met.
AnimationStep	Plays a Unity `Animation` or `Animator` clip on activation, completes when the clip ends.
DelayStep	Waits a configurable duration (pauses correctly on sequence pause).
IntCounterStep	Tracks an integer counter; completes when the count reaches a target value.
FloatListenerStep	Monitors a float value; completes when it crosses a threshold.
BranchingStep	Activates exactly one child step from an array by index at runtime.
ConditionalStep	Binary true/false branch — activates `trueStep` or `falseStep` child.
InputStep	Waits for a configurable input action (key, button, axis).

VR-specific step scripts live under _MolcaSDK/_VR/Scripts/Scenario/Steps/ (see navigation).

Code

Core steps are plain Step subclasses. Example shape (names vary — open ParallelStep.cs etc. in _Core/Sequence/Step/):

using Molca.Sequence;
using UnityEngine;

public class TimedGateStep : Step
{
    [SerializeField] private float delay = 1f;

    protected override void OnStepActivated()
    {
        base.OnStepActivated();
        Invoke(nameof(Complete), delay);
    }
}

For authoring nested graphs in-editor, use Sequence Visualizer and CSV Step Importer.

Unity Editor

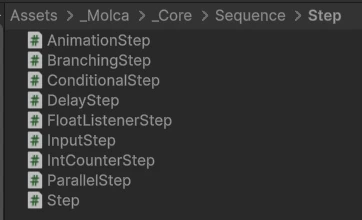

Core Step Types Project — Project window — Core step scripts

Step (base class)BranchingStep
