Gaze Interaction Implementation

Documentation Index

Fetch the complete documentation index at: https://docs-unity.molca.id/llms.txt

Use this file to discover all available pages before exploring further.

Core Components:

• Assets/_MolcaSDK/_VR/Scripts/Scenario/Steps/LookAtStep.cs — Step that validates gaze dwell completion
• Assets/_MolcaSDK/_VR/Scripts/Scenario/Steps/ProgressFeedbackUI.cs — Radial progress feedback for gaze dwell
• Assets/_MolcaSDK/_VR/Scripts/Scenario/Listener/StepDirectionBeltController.cs — Optional direction belt for target guidance

​

Role

This guide covers implementing gaze-based interactions (inspection, verification, examination) in VR training scenarios:

• LookAtStep — Step that validates player gaze on target for required duration
• ProgressFeedbackUI — Radial + percentage feedback showing gaze progress
• Direction Belt — Optional animated guide pointing to gaze target
• Head Transform — Auto-uses Camera.main or assigned head reference

Combined, these create a guided inspection experience where trainee looks at an object/point to verify or examine it, with visual progress feedback.

​

Setup Steps

​

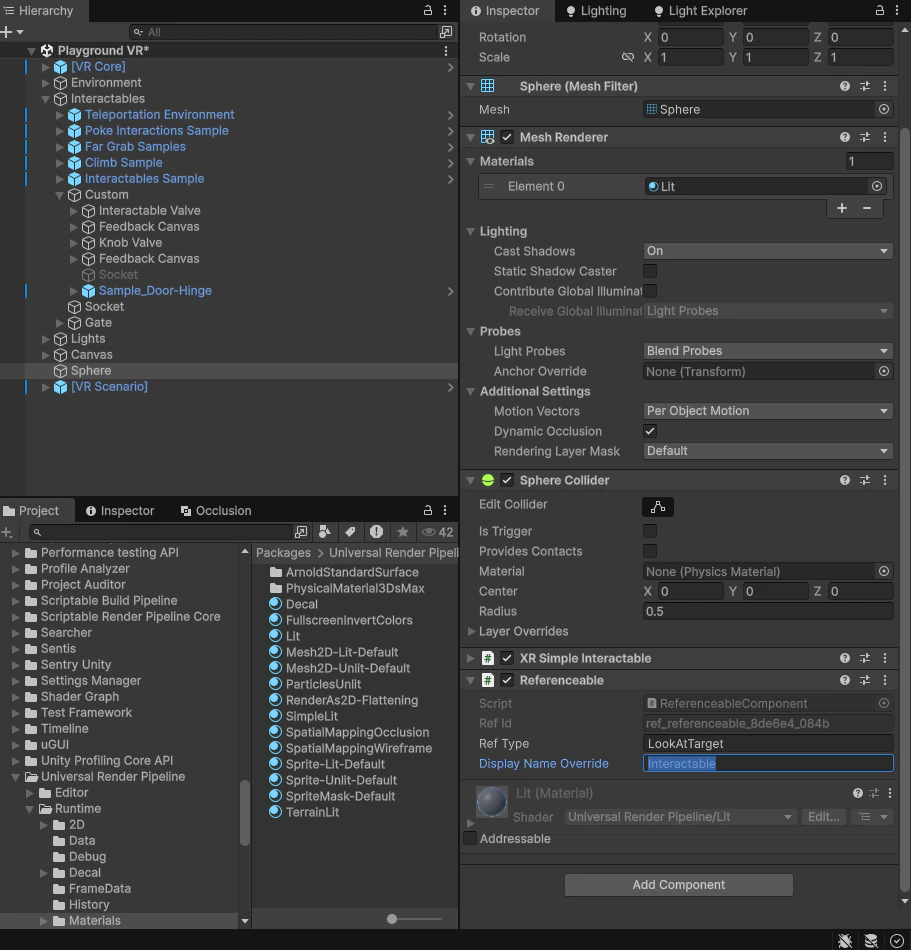

1. Create Gaze Target Object

1. Create or select the object to be inspected (e.g., dashboard indicator, component, meter)
2. Add ReferenceableComponent to the target GameObject (auto-generates ID via OnValidate)
3. Note the RefId — you’ll assign this to LookAtStep

​

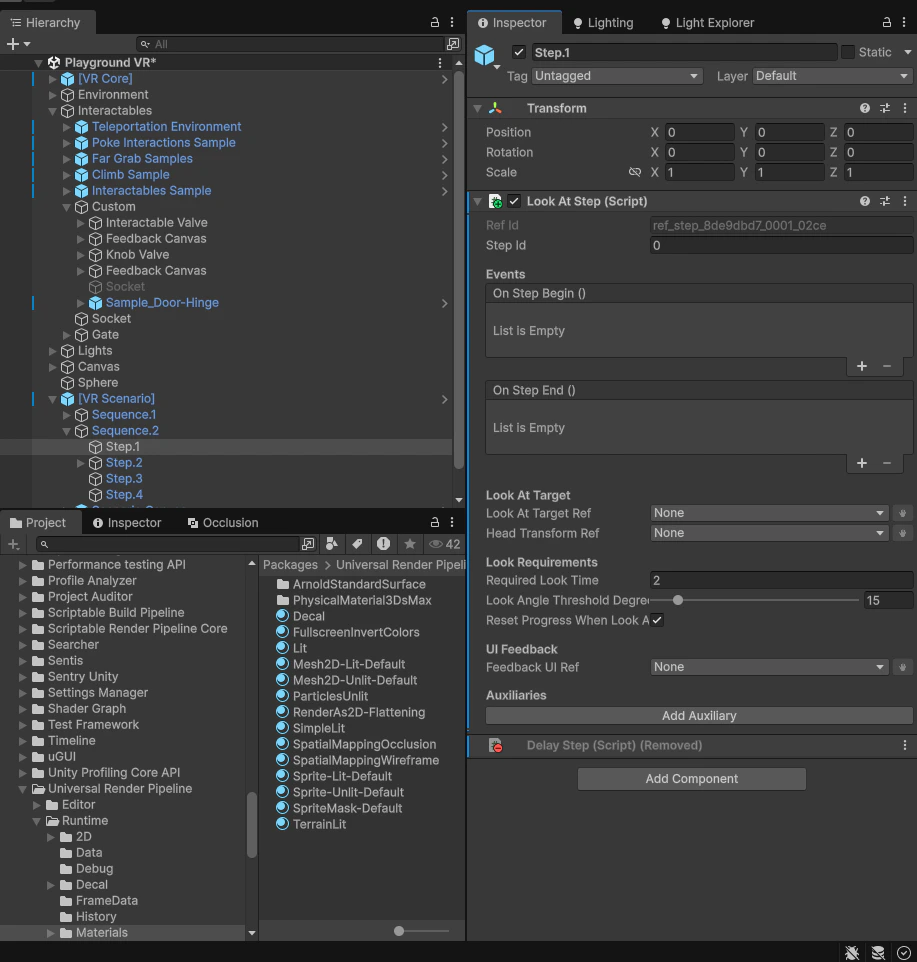

2. Create LookAtStep for Gaze Validation

1. Create or select a GameObject to hold the LookAtStep component (can be parent or separate manager)
2. Add LookAtStep component
3. Configure in Inspector:
   • Look At Target Ref: Assign the target’s ReferenceableComponent
   • Head Transform Ref: Assign head/camera transform (or leave empty to auto-use Camera.main)
   • Required Look Time: Duration in seconds trainee must look (e.g., 2-3 seconds for inspection)
   • Look Angle Threshold Degrees: Cone angle for “looking at” target (e.g., 15° for focused inspection)
   • Reset Progress When Look Away: Enable to reset timer if trainee looks away
   • Feedback UI Ref: Assign the ProgressFeedbackUI (next step)

​

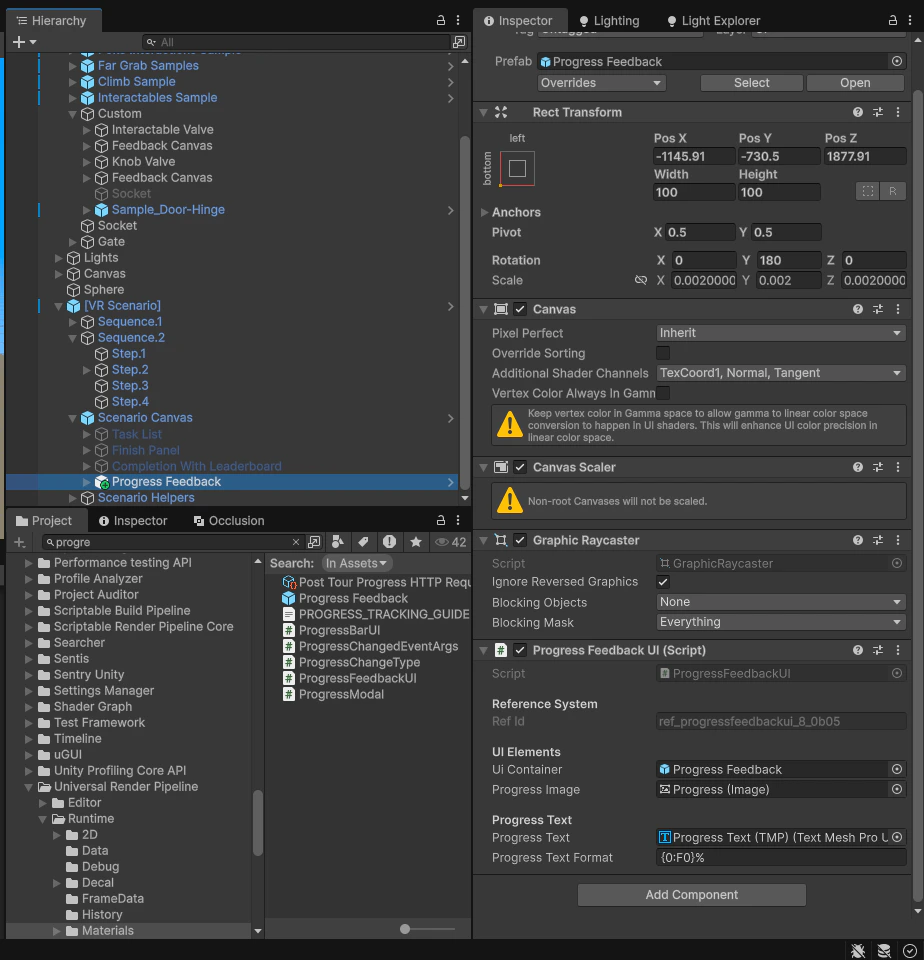

3. Create ProgressFeedbackUI for Gaze Progress

1. Create a Canvas (Screen Space or World Space) for progress feedback
2. Add ProgressFeedbackUI component to the Canvas or container
3. Configure in Inspector:
   • UI Container: Drag the container/canvas GameObject (shown/hidden by step)
   • Progress Image: Assign a radial Image component (Image Type: Filled, Fill Method: Radial)
   • Progress Text: Assign a TextMeshProUGUI component for percentage display
   • Progress Text Format: Format string (default: {0:F0}% for whole percentage)

​

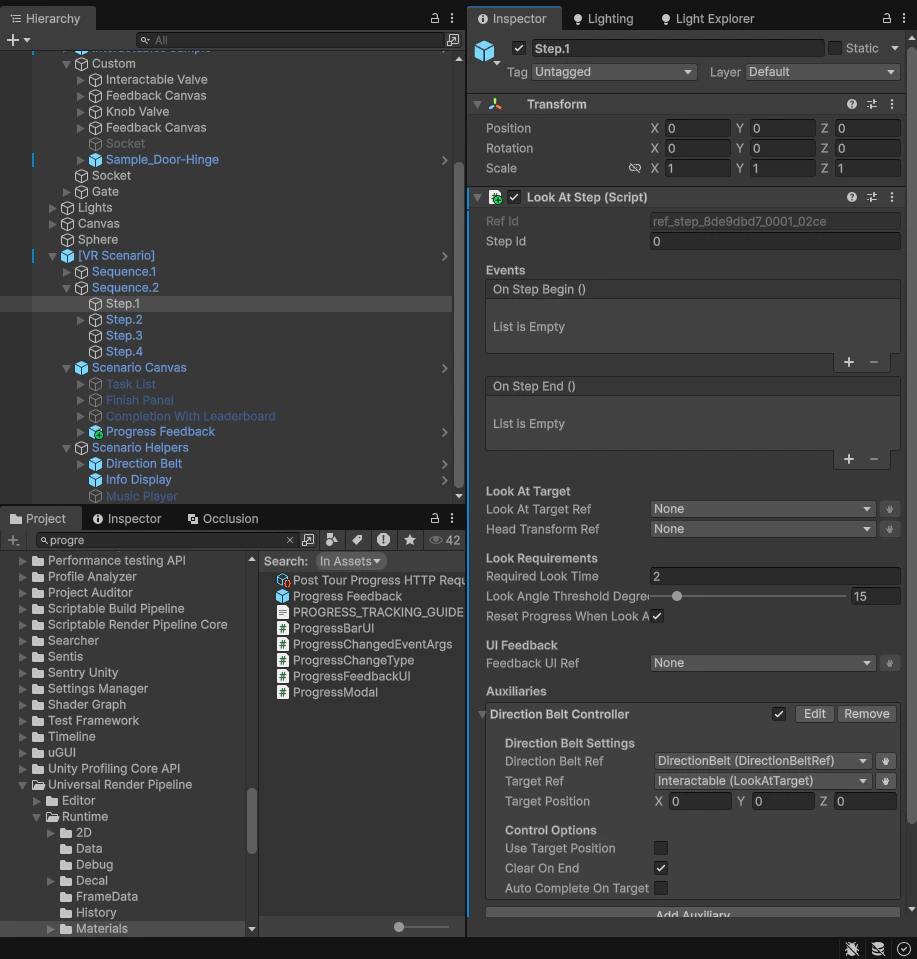

4. Optional: Add Direction Belt for Target Guidance

1. On the LookAtStep component, expand Auxiliaries section
2. Click Add Auxiliary → VR/Scenario/Direction Belt Controller
3. Configure StepDirectionBeltController:
   • Direction Belt Ref: Assign DirectionBelt’s ReferenceableComponent
   • Target Ref: Assign gaze target’s ReferenceableComponent (same as LookAtStep target)
   • Clear On End: Check to clear belt when inspection completes

​

How It Works

​

LookAtStep

File: Assets/_MolcaSDK/_VR/Scripts/Scenario/Steps/LookAtStep.cs Monitors player gaze direction and accumulates dwell time:

1. On step start (OnStepActivated): Initializes gaze tracking
   • Resolves target and head transforms
   • Shows ProgressFeedbackUI
   • Sets dwell timer to zero
2. Per frame (Update): Checks if player is looking at target
   • Calculates angle between head forward and target direction
   • If angle ≤ Look Angle Threshold: accumulates dwell time
   • If looking away and Reset Progress When Look Away enabled: resets timer
3. Progress check: When accumulated time ≥ Required Look Time, completes step
4. On step end (OnStepCompleted): Hides ProgressFeedbackUI

Key fields:

• lookAtTargetRef — Target to gaze at (ReferenceableComponent)
• headTransformRef — Head/camera transform (auto-finds Camera.main if empty)
• requiredLookTime — Gaze duration in seconds
• lookAngleThresholdDegrees — Cone angle (5–90°)
• resetProgressWhenLookAway — Reset timer on look-away
• feedbackUIRef — ProgressFeedbackUI reference

​

ProgressFeedbackUI

File: Assets/_MolcaSDK/_VR/Scripts/Scenario/Steps/ProgressFeedbackUI.cs Displays radial fill + percentage text for gaze progress:

1. Show/Hide: Canvas visibility controlled by LookAtStep
2. SetProgress(0–1): Updates radial fill amount and text percentage
3. IsVisible: Property tracking UI visibility state

Key fields:

• uiContainer — Canvas/container to show/hide
• progressImage — Radial Image (type: Filled, method: Radial)
• progressText — TextMeshProUGUI for percentage
• progressTextFormat — Format string ({0:F0}% = “0%”, “50%”, “100%“)

​

Expected Results & Interaction Flow

​

Idle State

Step is not active. Target appears normal. ProgressFeedbackUI is hidden. No visual feedback.

​

Step Activated (Inspection Begin)

When LookAtStep becomes active:

• ProgressFeedbackUI appears (radial fill at 0%, text “0%”)
• Direction Belt becomes visible (optional, if configured)
• Visual feedback signals “look at target to inspect”

​

Approaching Target (Looking)

Trainee’s gaze enters the cone toward target:

• Radial fill starts increasing (0% → 100%)
• Percentage text updates in real time (0% → 50% → 100%)
• Progress accumulates as long as gaze stays on target

​

Target Locked (Full Inspection)

Trainee maintains gaze on target for full duration:

• Radial fill reaches 100%
• Text shows “100%”
• Step completes when dwell time ≥ Required Look Time

​

Look Away (Progress Reset)

If trainee looks away before completion:

• If Reset Progress When Look Away enabled:
  • Radial fill immediately resets to 0%
  • Text resets to “0%”
  • Dwell timer resets
• If disabled:
  • Progress pauses but doesn’t reset
  • Timer resumes when trainee looks back

​

Step Complete

Gaze dwell time satisfied:

• ProgressFeedbackUI hides
• Direction Belt clears (if Clear On End enabled)
• Step fires OnStepEnd event
• Inspection complete

​

Implementation (Inspector Only)

For gaze inspection with progress feedback, no code required. Configure entirely in Inspector:

1. Target with ReferenceableComponent — What to inspect
2. LookAtStep — Gaze validation and timer
3. ProgressFeedbackUI — Radial progress display
4. Optional: StepDirectionBeltController — Target guidance

All components work together automatically through the step lifecycle.

​

Additional Auxiliaries

LookAtStep can use other auxiliaries for enhanced feedback:

​

Troubleshooting

​

Related

• LookAtStep — Gaze dwell validation and timer control
• ProgressFeedbackUI — Radial progress display UI component
• StepDirectionBeltController — Optional target guidance via direction belt
• VR step auxiliaries — Overview of all StepAuxiliary types
• Step scoring auxiliary — Time-based scoring for inspection speed
• VR player manager — Disable locomotion during inspection

​

Visual Examples

​

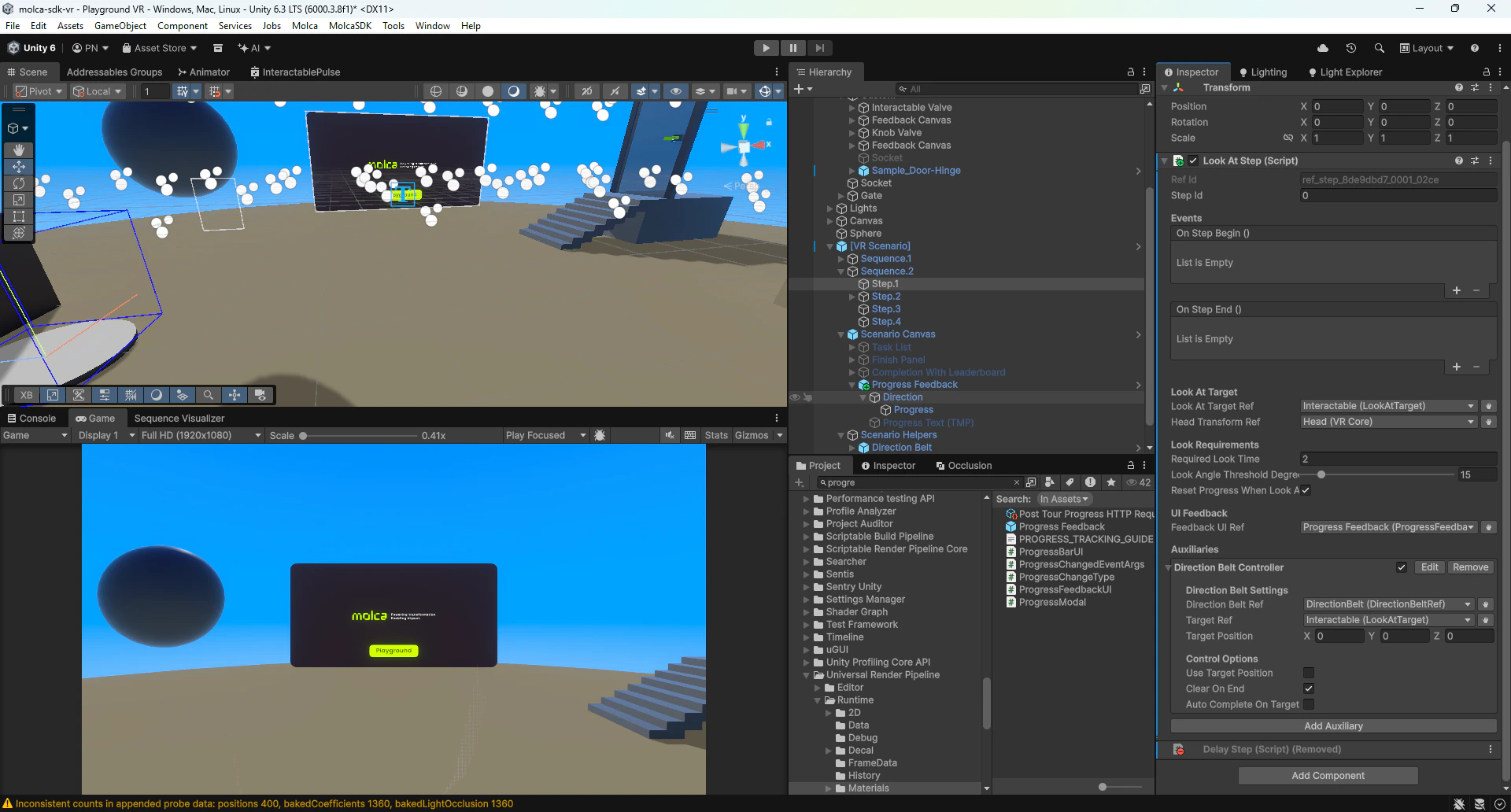

Scene Setup

​

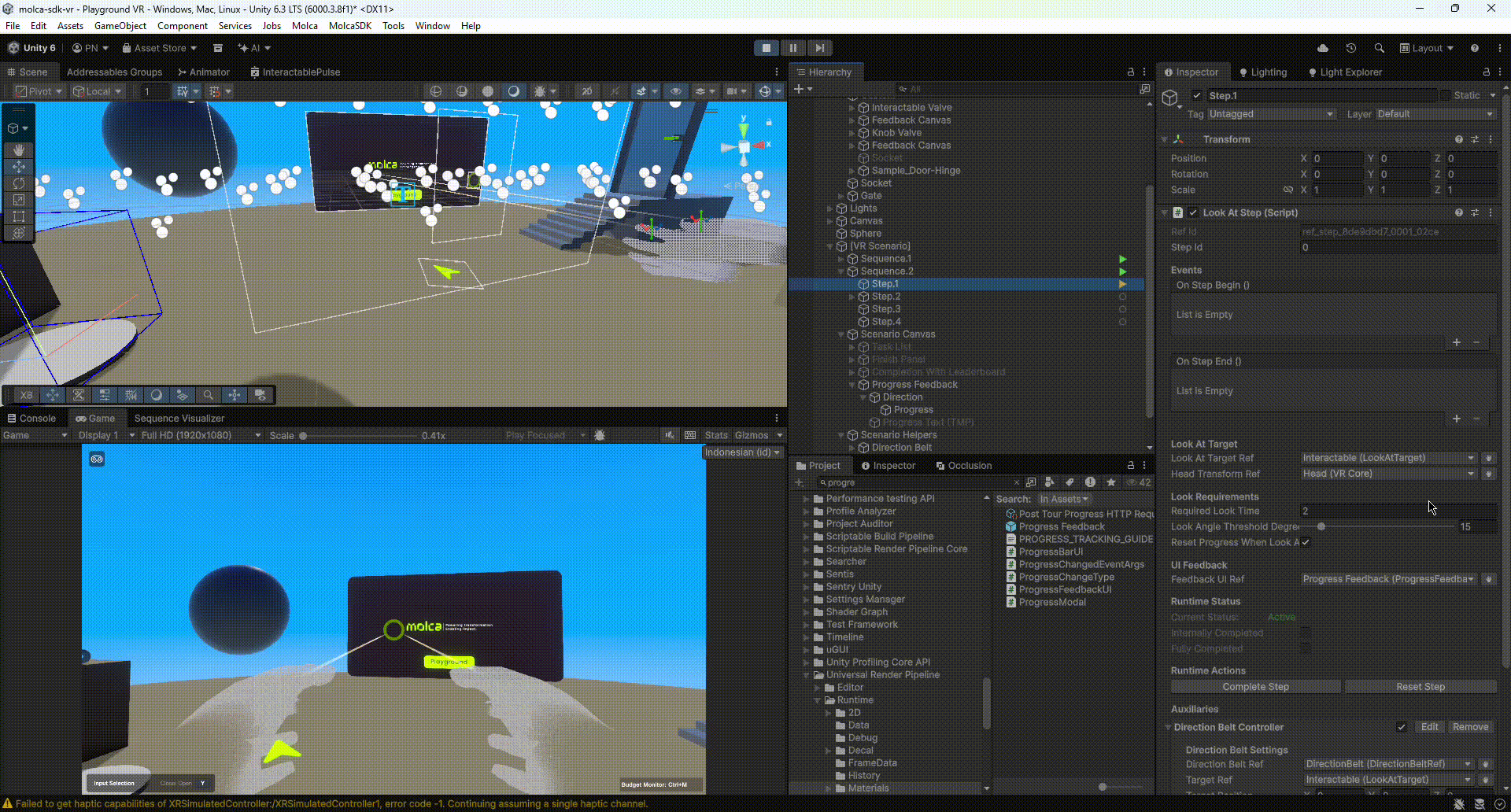

Interaction Flow Animation
